Q- 60/2 Electric Measuring Equipment Hipot Tester Hvdc Tester DC High Voltage Generator

Posted on

  • Model NO.: Q- 60/2
  • Model No: Q- 60/2
  • Output Power: 120W~900W
  • Apparatus: DC 60kv to 400kv
  • Output Voltage: 60kv~400kv
  • Trademark: Huadian
  • Specification: 5kg~20kg
  • HS Code: 9030339000
  • Type: High Voltage Generator
  • Application: Applied in Power Cable Test
  • Output Current: 2mA~5mA
  • Warranty: 1 Year
  • Delivery Time: 7 Working Days After Payment
  • Transport Package: Wooden Box with Foam Inside
  • Origin: Dongguan China

Q- 60/2 Electric Measuring Equipment Hipot Tester HVDC Tester  DC High Voltage Generator

Introduction
  • High reliability: high frequency voltage muti-doubler reticfier, simple circuit, high overload capability, rare fault, without maintance.
  • Small volume: one person can carry the largest HVDC generator(220kV/2mA).
  • Perfect seal by metal housing, high mechnical strength.
  • Safe, convenience in operation, metal housing grounded.
  • There is no high voltage and low voltage connector outside, easy connection.
  • Good auto protection function.
  • Excellent accuracy. The leakage current at HV side is measured by digital meter accuracy.
  • With the voltage feedback, so the output voltage stability has been greatly improved, the voltage drift is very small
  • Dramatically increase the frequency, the ripple factor smaller
  • Added a high-precision 0.75UDC-1mA function button, brought great convenience to the measurement of zinc oxide arresters
Parameters:

  Q- 60/2 Q- 60/3 Q- 80/2 Q- 80/3

Output Voltage (KV) 60 60 80 80
Output Current (mA) 2 3 2 3
output Power (W) 120 180 160 240
Charge Current (mA) 4 5 4 5
Size (mm2) 400×400×180 400×400×180 450×400×180 450×400×180
Weight    (kg) 7.8 8 8.3 8.5
Voltage measurement error 1%(Full Scale)±1
Current measurement error 1%(Full Scale)±1
ripple factor ≤0.5%
voltage stability ±10%,≤0.5%
Operating mode intermittent service:30mins
  1.1 multiple output voltage:10mins
environment temperature -15ºC~50ºC
working humidity <90%
altitude <2000 Meter

PEW Enameled Aluminium Wire

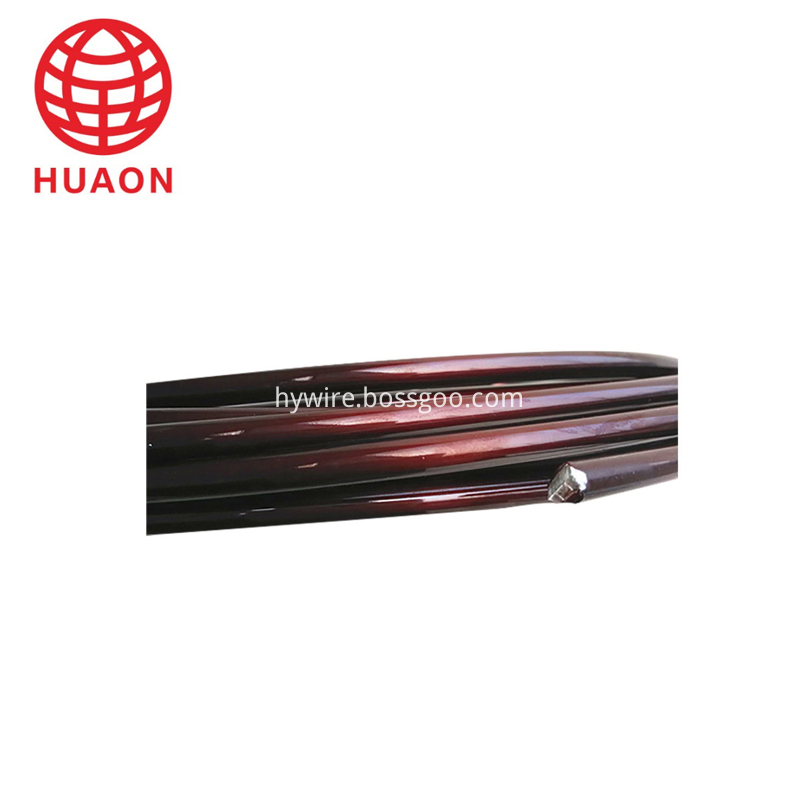

About PEW Enameled Aluminium Wire

We product class 155 enameled aluminium wire from 2.65-6.0 mm.

According to the characteristics of motor, transformer, automotive electrical and high-speed winding machine, we have advantages in resilience, breakdown voltages and have imported machine to protect the quality of Enameled Copper Wire.

Enameled Aluminum




Name

Enameled Aluminum Wire

Conductor

Aluminum

Dimension

Diameter(mm): 2.65 ~ 6.0

Thermal Class(℃)

130(Class B); 155(Class F); 180(Class H); 200(Class C); 220(Class C+);

Standard

IEC; ISO9000; ISO9001; IATF16949

Packing

PT4 – PT200 or ply-wood spool

Application

Transformer; motor; generator; modern instrument; welding machine and so on.


Class 155 heavy insulation thickness of modified polyester enameled aluminum round wire
